ePropulsion
ePropulsion G102-100 Battery
2 Year Warranty
Price Match Promise
See below for our recommended outboard shaft lengths, based on your vessel's transom height.
Spirit Plus range:
| Shaft Length | Suits Transom Height |
|---|---|
| Extra Short | 30cm - 40cm |
| Short | 40cm - 50cm |
| Long | 50cm+ |
Spirit Evo and Navy range:
| Shaft Length | Suits Transom Height |
|---|---|
| Short | - 50cm |
| Long | 50cm+ |
The chemistry of G102 battery is LiFePO4, which has 3 times higher energy density and 70% less weight than equivalent capacity lead acid batteries.
It has a design life of 3000 charge cycles at 80% DOD. Comparatively, traditional lead acid batteries can only reach around 500 cycles.
The in-built intelligent battery management system (BMS) ensures maximum safety for users. It is also protected by meta housing that is weather resistant, impact resistant and waterpoof (IP67 rating).
The G102 battery is compatible with 96V 10kW-40kW ePropulsion motors, including the all new I-Series inboard motors.
Does not include battery charger. Charger sold separately.
Product No.: GB-102-100

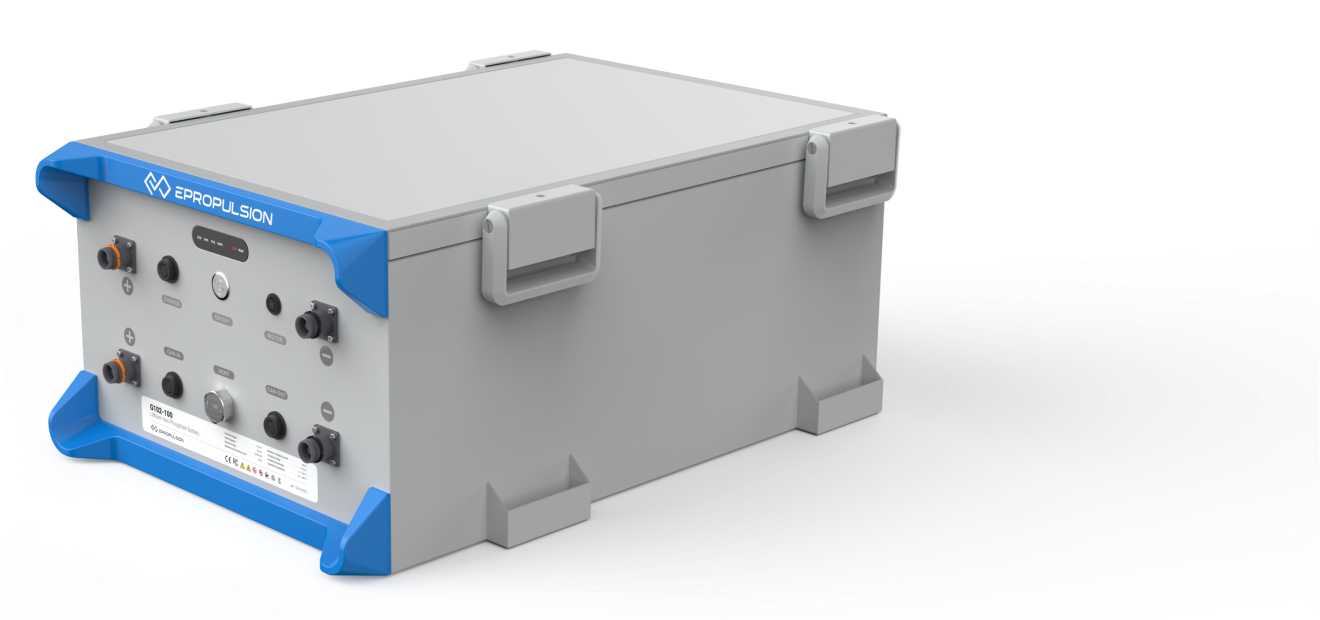

G102-100 Battery
Lithium Iron Phosphate Battery (LiFePO4)
High-performance and durable lithium ironphosphate battery for electric boating
10240 Wh / 96 V
Why Choose G102-100 Battery
Fully Compatible
with ePropulsion Motors
Power the 96V 10kW to 40kW ePropulsion motors
including the I-Series inboards.*
including the I-Series inboards.*
Maximum safety
Made with LFP, the built-in intelligent battery management system (BMS) is applied to provide maximum safety for the users.
Long Life Cycle
3,000 cycles at 80% DOD, the G102-100 lifepo4 battery powers your motors much longer than lead-acid
batteries.**
batteries.**
High Energy Density
3 times higher energy density and 70% less weight
than lead-acid batteries.**
than lead-acid batteries.**
Easy to Install
Connectors can be installed with only ONE hand, and
the battery saves wiring harness connection compared
to series-parallel connection of battery.
High Reliability
All-metal housing is more reliable, weather resistant,
impact resistant and drop proof.
impact resistant and drop proof.
* G102-100 can be connected in parallel to power different ePropulsion motors.
** Under equal capacity.
** Under equal capacity.
Design
Specs
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Rated Voltage | 102.4 V |
| Capacity | 10240 Wh / 100 Ah |
| Battery Life | 3,000 cycles at 80% DOD |
| Weight | 100 kg |
| Dimensions | 680 x 500 x 300 mm (26.8 x 19.7 x 11.8 in) |
| Cut-off Voltage | 83.2 V |
| Final Charging Voltage | 115.2 V |
| Max Continuous Discharging Current | 100 A |
| Serial Connection | N/A |
| Parallel Connection | Up to 8 in 1 cluster. Multiple clusters are possible in the system |
| Cell Configuration | 32S1P |
| Charging Temperature | 0 to 55℃ |
| Discharging Temperature | -10 to 60℃ |
| Communication | One CAN for ePropulsion motors / One CAN (Two ports) for parallel batteries / One CAN for charger |
| Shipping Classification | UN3480, Class 9, UN38.3 Certified |
| Approvals | CE, UKCA, FCC |
| Warranty (Non-Commercial Use) | 2 years |
